Infrared Image Gallery 3

See What's Really Going On!

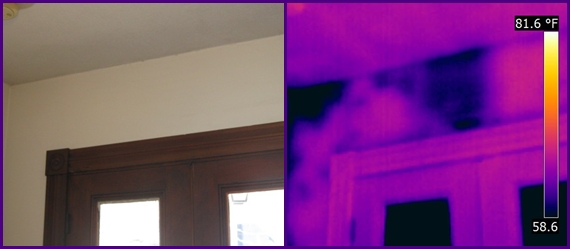

My infrared camera detects poor installation of cellulose insulation in the concealed wall cavity above the door.

wall insulation not complete



infrared_line

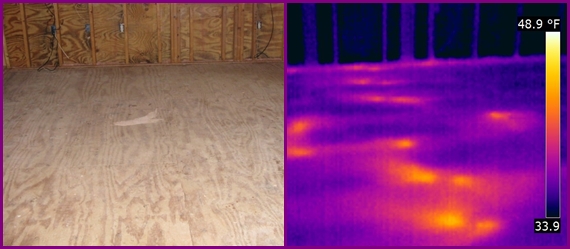

Thermal imaging detects insulation voids throughout this attic floor

attic_insulation_void



infrared_line

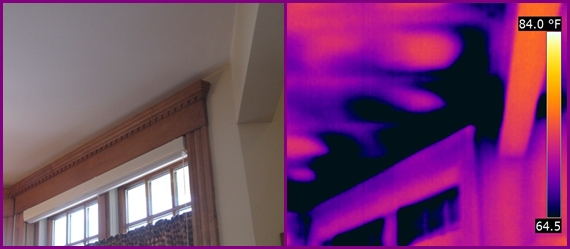

This infrared scan detects poor insulation application in the outer ceiling cavities.

ceiling_insulation_void



infrared_line

This wall setup appears fine at first glance, but my infrared camera detects uninsulated wall cavities behind the flat-screen television.

wall_insulation_void



infrared_line

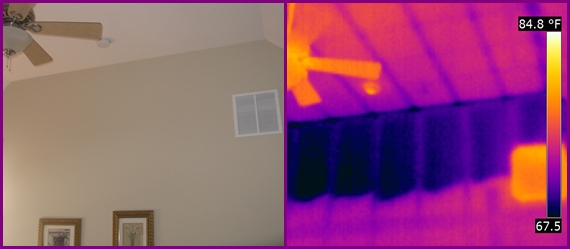

Thermal imaging reveals a large insulation void throughout this upper wall.

wall_insulation_missing



infrared_line

Thermal scanning of the attic detects heat loss from the living area below.

attic insulation voids



infrared_line

The builder claimed that all the walls in this rehabilitated home were fully insulated, but my infrared camera tells a different story.

wall insulation not complete



infrared_line

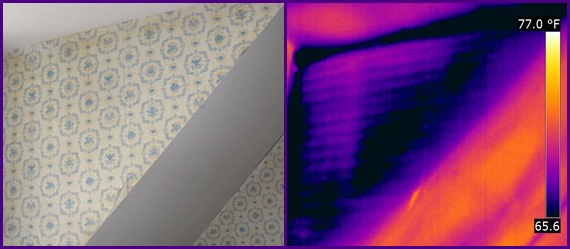

Excessive ice damming was occurring at the roof edge outside this dormer wall. Infrared imaging reveals missing insulation behind the plaster wall.

insulation_void_dormer

infrared_line

This upper-level knee wall was not accessible, but my infrared camera detected a lack of insulation in the knee wall stud cavities.
